Total gun barrel weight: 68.04 kilograms (150.0 lb) Minus breech mechanism: 20.865 kg (46.00 lb) rate of fire: Cyclic: 450 rounds per minute Practical: 250-320 rounds per minute Muzzle velocity L70: 820 m/s

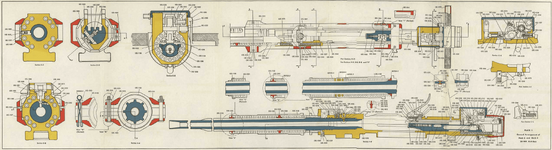

20-mm Oerlikon Gun maintenance manual IPC and drawing including ammunition 1950 army liberated manuals, sharing freely here for non-profitable use only.
?hash=0e01b40cbdeed46df36e1332ca09925a.png?hash=0e01b40cbdeed46df36e1332ca09925a.png1652410473501.png
Please download the attachments


Attachments

  • 20MMANTIAIRCRAFTGUNMOUNT-OP909.pdf
    14.7 MB · Views: 189
  • 20MMANTIAIRCRAFTGUN-OP911.pdf
    6.5 MB · Views: 152
  • 20mmHistoricNavalShipsvisitorsGuide-GunMountandTurretCatalog.pdf
    303.8 KB · Views: 136
  • 20MM-RANGE-TABLE-OP-945.pdf
    3.5 MB · Views: 132
  • 20MMTWINANTIAIRCRAFTASSEMBLIES-OP1439.pdf
    5.3 MB · Views: 152
  • OP2215NavyGunTypeAmmunition1959.pdf
    22.2 MB · Views: 153
Last edited:

Mark 14 gunsight operator and maintenance manual, used on 20mm mounts.
Please download the following 3 pdf attachments:


Attachments

  • GunSightMark14-GunnersOperingBulletinNo.2.pdf
    1.6 MB · Views: 123
  • GUN-SIGHT-MARK-14-OD4429.pdf
    13.2 MB · Views: 120
  • GUN-SIGHT-MARK-14-OP1040.pdf
    34.6 MB · Views: 123
