The SCR-584 was chosen to be the radar employed in the Corporal Type IIB guided missile system. It had been introduced into the field in the latter part of WW II as one of the latest Allied radar systems. The van was modified a bit for its use in the Corporal system; the antenna was removed from the van and placed on a towed trailer. In Germany we normally returned to the States for firing practice at a missile range in NM or TX but one year we were flown to the outer Hebrides Islands with our full complement of equipment in huge USAF cargo planes. This photo shows us on the British Royal Artillery Range in Benbecula. The SCR-584 was used for determining Azimuth, Elevation, and Slant Range. A separate Doppler radar determined Velocity as well as transmitted Arming Command and Final Range Correction. The US got their money's worth from that old radar.


Attachments

  • Radar Antenna-- Outer Hebrides.jpg
    Radar Antenna-- Outer Hebrides.jpg
    84.8 KB · Views: 23
Snautzer01 said:
? beam x-gerate y-gerate Tilburg 1943

View attachment 690946

View attachment 690947

View attachment 690949

View attachment 690950

View attachment 690951


  1. 2 x Wk2, Foto, Luftwaffe, Beobachtungs Türme der Luftwaffe in Tilburg 1943 | eBay
  2. 3 x Wk2, Foto, Luftwaffe, Beobachtungs Türme der Luftwaffe in Tilburg 1943 | eBay
Click to expand...
Looks like an 'Erika' VHF(30-33MHz) RNAV site.
Station name is 'Erika 2'. Location: Saint-Pierre-Église, France

Last edited:
As an eBay Associate we earn from qualifying purchases.
Snautzer01 said:

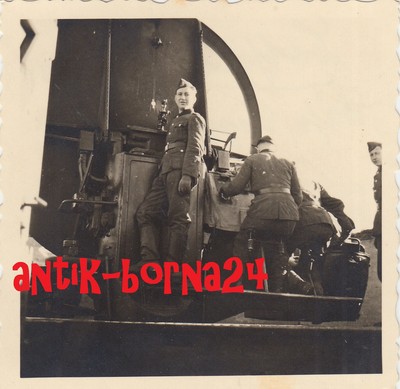

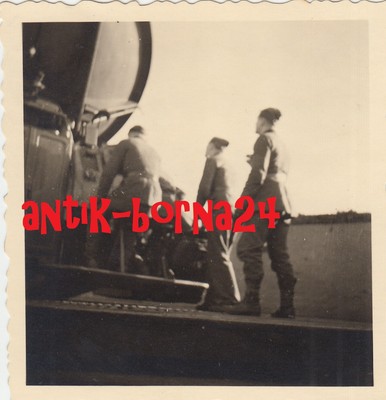

Würzburg radars with rotating AB-dipole kill marks

View attachment 692611

www.ebay.de

X472 Jugendliche Flakhelfer Luftwaffe Flakwaffenhelfer Würzburg Radar Gerät TOP | eBay

Entdecken Sie X472 Jugendliche Flakhelfer Luftwaffe Flakwaffenhelfer Würzburg Radar Gerät TOP in der großen Auswahl bei eBay. Kostenlose Lieferung für viele Artikel!
www.ebay.de
Click to expand...

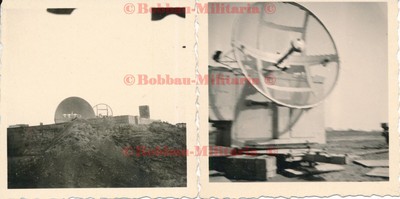

Nice pictures. Left picture shows both a Würzburg D and a Mannheim radar. Right picture shows an early version Mannheim with coupled binoculars
