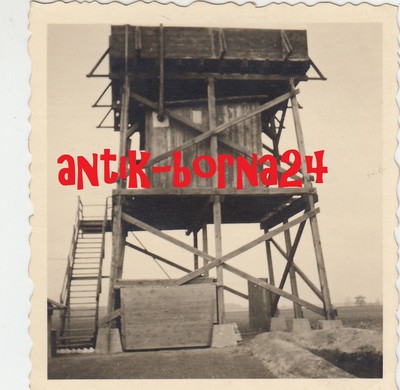

Flak Scheinwerfer Stellung Bothfeld Turm Flak Ers. Abt. 6




www.ebay.de

Foto LW Soldat Flak Scheinwerfer Stellung Bothfeld Turm Flak Ers. Abt. 6 #233 | eBay

Entdecken Sie Foto LW Soldat Flak Scheinwerfer Stellung Bothfeld Turm Flak Ers. Abt. 6 #233 in der großen Auswahl bei eBay. Kostenlose Lieferung für viele Artikel!
www.ebay.de

As an eBay Associate we earn from qualifying purchases.
Snautzer01 said:

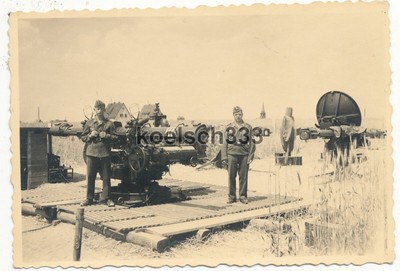

Würzburg D. Large, wooden platform, so a type D2 (Schwermetall-Lafette) or D3 (Kurzer Schwermetall-Lafette) F Factfndr54 correct?

View attachment 695821

www.ebay.de

S470 Fotos Wehrmacht Luftwaffe Flak 8,8 Radar Würzburg Riese Top Detail Technik | eBay

Entdecken Sie S470 Fotos Wehrmacht Luftwaffe Flak 8,8 Radar Würzburg Riese Top Detail Technik in der großen Auswahl bei eBay. Kostenlose Lieferung für viele Artikel!
www.ebay.de
Click to expand...
Hello Snauzer01. Nice picture.
Würzburg D2 and D3's have a circular wooden platforms ('Umlaufrost') that is part of their Lafette.
Your picture show a type 'C': a rotating dipole and no peephole in the dish (like type D).
Würzburg C's are mounted on a trailer ('Anhänger A2'), platforms were locally constructed and fitted just between the trailer and the rotating Würzburg.
Often you see the wheelcaps sticking though the platform, see attachment


Attachments

  • Wurzburg C, note wheel caps.jpg
    Wurzburg C, note wheel caps.jpg
    54.3 KB · Views: 33
As an eBay Associate we earn from qualifying purchases.
Snautzer01 said:

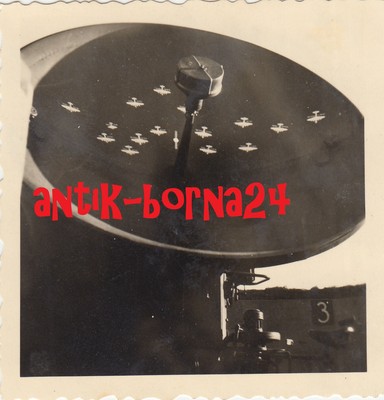

Würzburg stellung Bothfeld Flak Ers. Abt. 6

View attachment 695826

www.ebay.de

Foto LW Soldat Flak FuMG Radar Messgerät Stellung Bothfeld Flak Ers. Abt. 6 #237 | eBay

Motiv/ Zustand : s.Scan und dem Alter entsprechend.
www.ebay.de
Click to expand...
Würzburg type "D', note the peephole for the 'Rundblickfernrohr' and presence of an EAG-62. Note the platform: type is D2 or D3 on Lafette.
Also note the tubes to support the seats, this not standard

Last edited:
As an eBay Associate we earn from qualifying purchases.
Near Marum, along the A7, are the remains of a German radar position (Anlage Löwe) from the early period of the war. The bunkers were most likely built to accommodate troops. There is also the concrete foundation of a Würzburg-Riese radar. The radar station was part of the "Himmelbett Stellung" that had to monitor the airspace above Western Europe. It was manned by about 200 men from the Luftnachrichten Regiment 201 II Abteilung / 12 flugmelde Leit kompanie Leeuwarden.

www.tracesofwar.nl

Duitse Radarstelling Trimunt - Marum - TracesOfWar.nl

www.tracesofwar.nl www.tracesofwar.nl
