Good morning everyone,

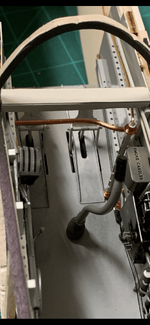

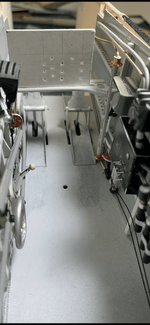

Today I'll cover this unique pipe with several openings. As it turned out, it's a fuel gauge. At least that's what the reference says. Please correct me if I'm wrong.

I'm going to present my trial & errors in effort to get what I felt, would be good results.
Preserving history, one gauge at a time.

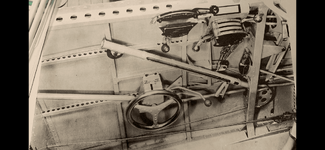

I'm not sure what this is, but from the looks of the long slot coupled with a clasp handle, I took it to mean an old fashion parking brake on the left side just under the throttle . Those brakes were of the kind where we pull back the clasp handle & as it's being pulled, one could hear rattling sounds until it reaches the end.


Attachments

  • IMG_9103.png
    380.6 KB · Views: 8

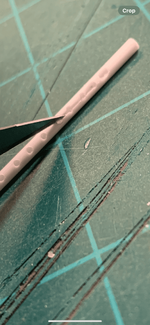

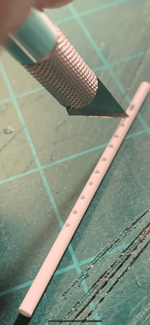

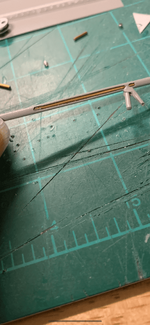

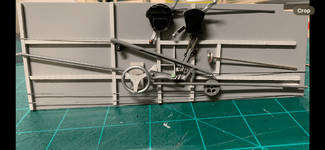

I employed the same technique here as I did with the fuel gauge. Only this time, instead of cutting short slots, I continued the cut all the way through to the end.

From there, I fashioned a clasp handle & threaded some silver colored thread through the tube & some of the pulleys. I think it came pretty close to mimicking the full sized aircraft.


Attachments

  • IMG_9103.png
    380.6 KB · Views: 9
  • IMG_9098.png
    432 KB · Views: 9
  • IMG_9109.png
    488 KB · Views: 9
  • IMG_9110.png
    560.8 KB · Views: 8
  • IMG_9111.png
    496 KB · Views: 8

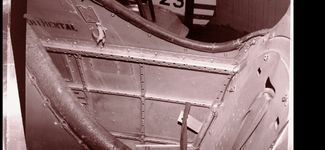

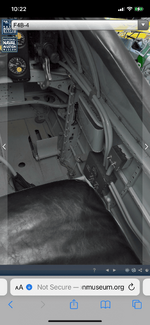

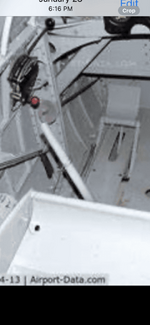

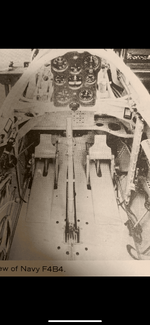

From the photos taken from both the P-12E at Planes of Fame air museum & from the Nat'l Museum of Naval Aviation, the pilot's seat was of the bucket type, similar to one of the Mustang's.

I noted that the back of the pilot's seat was attached directly to the bulkhead.


Attachments

  • IMG_9088.png
    336.8 KB · Views: 10
  • IMG_9087.png
    254.3 KB · Views: 10
  • IMG_9184.png
    413.1 KB · Views: 10
Last edited:

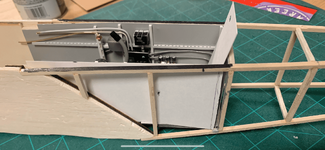

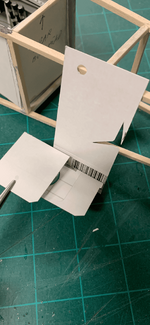

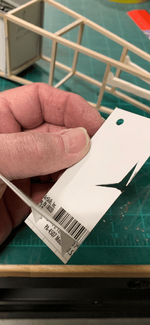

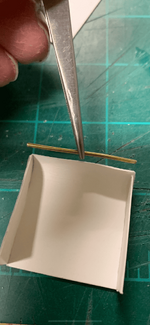

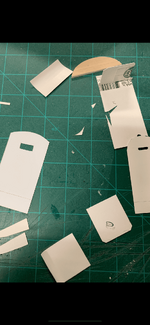

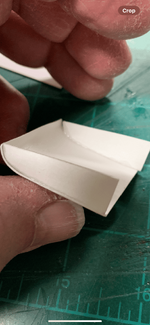

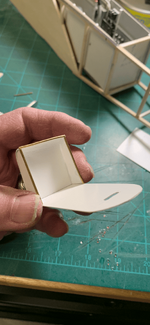

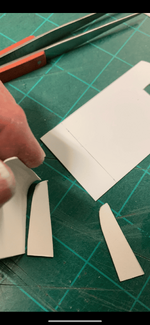

Just as with my Guillow's P-51 Mustang, I fashioned the seat using various gauges of wire & cardstock.


Attachments

  • IMG_9093.png
    444.6 KB · Views: 9
  • IMG_9089.png
    432.1 KB · Views: 9
  • IMG_9090.png
    513.4 KB · Views: 9
  • IMG_9083.png
    362.9 KB · Views: 10
  • IMG_9084.png
    409.5 KB · Views: 7
  • IMG_9085.png
    429.1 KB · Views: 9
  • IMG_9086.png
    446.9 KB · Views: 10
  • IMG_9087.png
    254.3 KB · Views: 10
  • IMG_9082.png
    480.7 KB · Views: 11

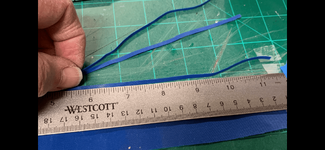

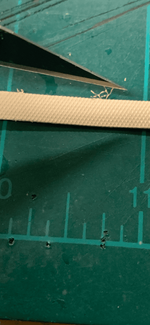

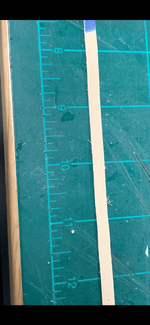

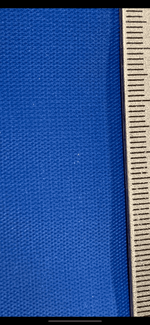

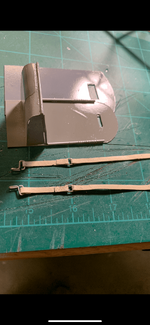

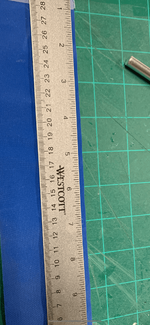

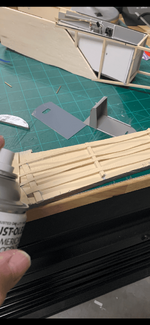

The seat belts were made from an old canvas bag. I felt this texture came closer to mimicking the real seat belts than masking tape.


Attachments

  • IMG_9074.png
    401 KB · Views: 9
  • IMG_9075.png
    540.5 KB · Views: 9
  • IMG_9076.png
    526.6 KB · Views: 9
  • IMG_9077.png
    438.1 KB · Views: 7
  • IMG_9078.png
    444.9 KB · Views: 10
  • IMG_9079.png
    568.8 KB · Views: 9
  • IMG_9080.png
    752.5 KB · Views: 9
  • IMG_9081.png
    561.3 KB · Views: 8

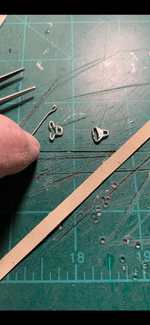

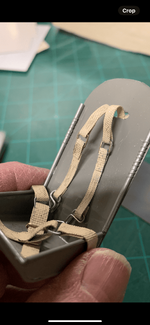

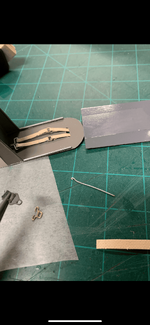

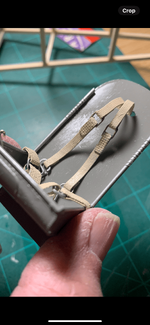

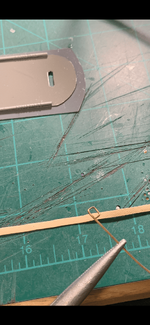

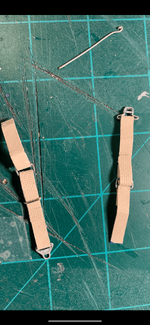

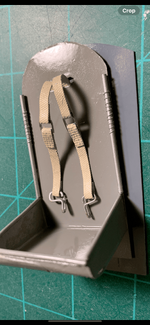

Wire was used to fashion the adjusting clasps & locking clips.


Attachments

  • IMG_9068.png
    359.3 KB · Views: 9
  • IMG_9069.png
    434 KB · Views: 9
  • IMG_9072.png
    545.9 KB · Views: 9
  • IMG_9073.png
    364.5 KB · Views: 9
  • IMG_9074.png
    401 KB · Views: 8
  • IMG_9070.png
    787.8 KB · Views: 9
  • IMG_9071.png
    579.2 KB · Views: 9
  • IMG_9075.png
    540.5 KB · Views: 9

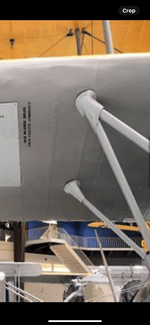

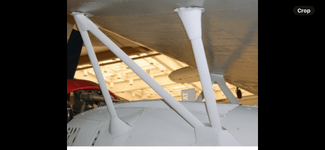

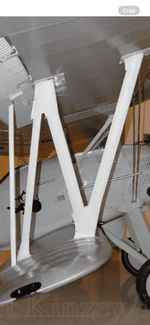

One of the major issues facing me was how to fabricate all those fairings on the wing struts & landing gears. I must've wracked my brains out for several weeks during the build on other projects.

Adding confusion to the whole matter, I discovered there were slight variations between them. Facing that, I decided a compromise consisting of a mix of several generic struts.

I believe I've come up with a workable solution.
At least it seems to work for me. I admit it's labor intensive but the results seem to speak positively for themselves.


Attachments

  • IMG_6900.png
    367.7 KB · Views: 9
  • IMG_6905.png
    360.7 KB · Views: 9
  • IMG_6902.png
    241.8 KB · Views: 7
  • IMG_7452.jpeg
    486.5 KB · Views: 7
  • IMG_8738.jpeg
    804.7 KB · Views: 7
  • IMG_8744.jpeg
    874.6 KB · Views: 9
This ended up becoming multiple steps:

Knowing the fairings had to conform to the exact curvature of the rib/s at that particular location, I first laid down some wax paper over the wing. This gave me a platform to work on that follows those curves. Wax paper (or parchment paper) was used because it's generally non-stick & I needed to be able to remove my work from the wing to finish off the final details.

I then cut out the bullet-shaped fairings that met the surface of the wing & mimicked the approx size for that set of struts.

These cutouts were then transferred to two separate masking tapes laid side-by-side over another separate piece of wax paper on top of a table.

The images were then traced onto the tapes, making sure that the pattern was exactly in the middle between the two tapes. This was important.

I needed to be able to peel off the tapes that surrounded the struts. This should explain the use of nonstick wax paper & the use of two separate tapes making it possible to remove away from the ends of an N shaped strut.

Yep, lots of thinking went into this stage.


Attachments

  • IMG_7355.jpeg
    1.5 MB · Views: 6
  • IMG_7356.jpeg
    990.5 KB · Views: 7
  • IMG_7357.jpeg
    1.2 MB · Views: 7
  • IMG_7358.jpeg
    1.2 MB · Views: 7
Next, a strip of glossy cardstock was wrapped around the base of the strut. The gloss has moisture resistant properties.

The strip will also help serve as the final end of that fairing to the strut without having to resort to using more filler being masked off the strut. This alone should save me a few moments of trying to figure out how I could sand around the join between two struts to an N strut. I also wanted to avoid the risk of accidentally sanding off the finish from the strut.


Attachments

  • IMG_7359.jpeg
    1.1 MB · Views: 6
